Bolt

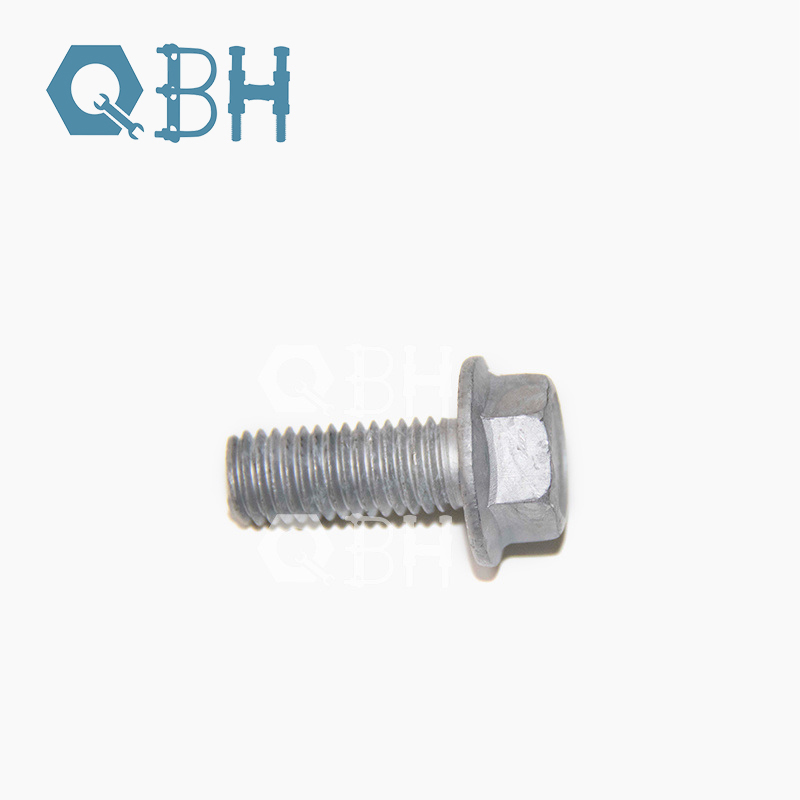

DIN6921 Hex Flange Bolt
DIN6921 Hex Flange Bolt Metric Without Serration, our bolts offer exceptional performance and reliability in even the most demanding environments. The hexagon flange design of these bolts provides a larger bearing surface and a more secure fastening, ensuring that your equipment remains safe and secured at all times. Additionally, our bolts are designed with a metric thread which is perfect for use in a wide range of industrial and engineering applications.
DIN6921 Hex Flange Bolt Metric Without Serration, our bolts offer exceptional performance and reliability in even the most demanding environments. The hexagon flange design of these bolts provides a larger bearing surface and a more secure fastening, ensuring that your equipment remains safe and secured at all times. Additionally, our bolts are designed with a metric thread which is perfect for use in a wide range of industrial and engineering applications.
Previous: DIN931 Hexagonal Bolt
Product Details
Product Introduction
Hexagon flange bolts manufactured to DIN 6921, supplied without serration under the head. The integrated circular flange provides an enlarged bearing surface that distributes clamp load and eliminates the need for a separate washer in most applications. Sizes range from M5 to M20, offered across property classes 8.8, 10.9, and 12.9 under ISO 898-1. External drive with standard hexagon wrenching. Surface finishes are selected to meet in-service environmental conditions.
Material & Mechanical Properties
Forged from medium carbon alloy steel and quench-and-tempered to achieve the specified tensile and proof load values. Mechanical certification is traceable to heat number with mill test reports available. Classes 8.8 and 10.9 provide reliable strength for medium- and high-stress joints; class 12.9 delivers ultimate tensile strength above 1200 MPa for static and dynamic loaded connections.
Geometry & Thread Form
The non-serrated flange face allows a smooth bearing surface suitable for painted, coated, or sensitive mating materials where serration marking is unacceptable. The flange diameter is proportioned to the bolt size per DIN 6921 to maintain adequate edge distance and uniform clamping. Coarse metric threads to ISO 724 speed installation and reduce cross-threading risk in steel, cast iron, and aluminum assemblies.
Corrosion Protection
Standard finish is zinc electroplated per ISO 4042/ASTM B633 with optional passivation for increased white rust resistance. For higher corrosivity categories (C3–C5), zinc-nickel, zinc flake, and hot-dip galvanized coatings are available. All protective finishes are specified with consideration to hydrogen embrittlement thresholds of the respective property class.
Application Suitability
Automotive powertrain and chassis components, engine assemblies, pumps, compressors, and general machinery where a compact single-unit flange bolt replaces a bolt-and-washer combination. The non-serrated underside suits assembly joints where surface preservation, uniform pressure distribution, and specified torque-tension characteristics are required.
Technical Parameters
| Place of Origin | CHINA |
| Standard | DIN6921 Hex Flange Bolt |
| HS CODE | 7318159001 |
| Brand Name | QBH |
| Certification | ISO9001 |
| Material | 35K, 40Cr, 35CrMo, SCM435, etc. |
| Size | M3-M64 |
| Production Process | Cold forging≤300mm, Hot forging≤1000mm |
| Class | 4.8/ 6.8/ 8.8/ 10.9/ 12.9 |
| Delivery Time | Within 30 Days |
Product Introduction
Hexagon flange bolts manufactured to DIN 6921, supplied without serration under the head. The integrated circular flange provides an enlarged bearing surface that distributes clamp load and eliminates the need for a separate washer in most applications. Sizes range from M5 to M20, offered across property classes 8.8, 10.9, and 12.9 under ISO 898-1. External drive with standard hexagon wrenching. Surface finishes are selected to meet in-service environmental conditions.
Material & Mechanical Properties
Forged from medium carbon alloy steel and quench-and-tempered to achieve the specified tensile and proof load values. Mechanical certification is traceable to heat number with mill test reports available. Classes 8.8 and 10.9 provide reliable strength for medium- and high-stress joints; class 12.9 delivers ultimate tensile strength above 1200 MPa for static and dynamic loaded connections.
Geometry & Thread Form
The non-serrated flange face allows a smooth bearing surface suitable for painted, coated, or sensitive mating materials where serration marking is unacceptable. The flange diameter is proportioned to the bolt size per DIN 6921 to maintain adequate edge distance and uniform clamping. Coarse metric threads to ISO 724 speed installation and reduce cross-threading risk in steel, cast iron, and aluminum assemblies.
Corrosion Protection
Standard finish is zinc electroplated per ISO 4042/ASTM B633 with optional passivation for increased white rust resistance. For higher corrosivity categories (C3–C5), zinc-nickel, zinc flake, and hot-dip galvanized coatings are available. All protective finishes are specified with consideration to hydrogen embrittlement thresholds of the respective property class.
Application Suitability
Automotive powertrain and chassis components, engine assemblies, pumps, compressors, and general machinery where a compact single-unit flange bolt replaces a bolt-and-washer combination. The non-serrated underside suits assembly joints where surface preservation, uniform pressure distribution, and specified torque-tension characteristics are required.
Technical Parameters
| Place of Origin | CHINA |
| Standard | DIN6921 Hex Flange Bolt |
| HS CODE | 7318159001 |
| Brand Name | QBH |
| Certification | ISO9001 |
| Material | 35K, 40Cr, 35CrMo, SCM435, etc. |
| Size | M3-M64 |
| Production Process | Cold forging≤300mm, Hot forging≤1000mm |
| Class | 4.8/ 6.8/ 8.8/ 10.9/ 12.9 |
| Delivery Time | Within 30 Days |
FAQ
1. How do you let me trust you.
Jiaxing City Qunbang Hardware Co.,ltd hs its own right of import and export,QBH trademark in China,United States,European Union have been registered.At the same time,you can also check the registration information of our company in the China industry and Commerce system.
2. How about your price.
We will be based on different markets,for different quality and quantity,tailor-made prices for customers,in order to achieve win-win goal.
3. How do you control your quality.
Incoming quality contral( IQC)→Process Quality control(PQC)→Output quality control(OQC),and the random samples is sent to TUV for testing.If the customer received the goods and found quality problems,QBH company promises to be responsible for returning money or replenishing the goods
4. Could you provide free samples?
For new customer, We can provide free samples for standard fastener, But the clients will pay the express
charges. For old customer, We will send you free samples and pay express charges by ourself.
5. What is your packing.
Usually 25KG/carbon,36CTNS on the pallets,or 20-30kg/Bags,then on the pallet,QBH company personalized packagingis also available,like 10PCS/plastic bag or 10pcs/box,it can print some information
such as LOGO and pattern of customers.
6. What is your payment term
Normally,our terms of payment are TT and L/C,if we cooperate for a long time,we can reach the point of mutual trust,and fully support our customers to become bigger and stronger in the local market.Not only in the price concessions,but also in the payment can also be made on credit,Specific credit sales time needs to be negotiated separately.
